Inductive sensor    ~    Analog, connectorversion

DCAL12 4609 UK        Analog   Falling charactheristics 1-9V

Picture:
Scheme:

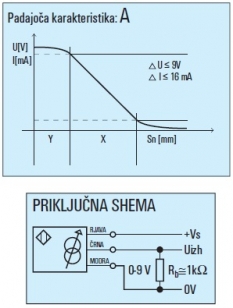

Electrical scheme:

Features	Value
Dimensions	M 12
Mounting	Shielded
Switching distance Sn [mm]	1 - 2
Supply voltage	DC
Supply voltage U[V]	15-30 V DC
Voltage tolerance Ud	0.8
Consumption Io[mA]	>20mA
Material housing	Stainless steel 1.4301
Housing form	Tubular
Housing Dimensions L	55 mm
Mechanical protection	IP 67
Connection	2m PVC
Temperature operating range	0 °C do + 60 °C
Temperature tolerance	0.8
Polarity protection	Build in
Useless zone	1mm
