    ~    Polarised retroreflex

QMRN/0N-0F (5m)        NPN  NO

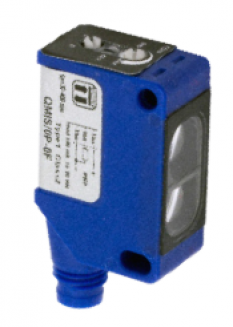

Picture:
Scheme:
Electrical scheme:

Features	Value
Switching distance Sn [mm]
Response time	1 ms
Setting the distance	Yes
Light
Function	dark-switch
Optics	RAVNA
LED function	Yes
Polarity protection	Build in
Switching frequency [ f ]	2000 Hz
Temperature operating range
Connection	M8-4p
Mechanical protection	IP 67
Housing Dimensions L
Housing form	Quader
Material housing
Max current I[mA]	100 mA
Consumption Io[mA]	30 mA
Voltage drop U[Ud]	2 V
Supply voltage	VDC
Supply voltage U[V]	10 - 30V DC
Accessories
