CEDES offers an extensive range of high-quality yet very cost-effective sensor solutions for the automatic door and gate market. Using over 25 years experience in developing innovative sensor technology, CEDES has built up a comprehensive product portfolio of sensors and light curtains. From safeguarding small sectional doors, such as those in private garages, right up to huge aircraft hangar entrances, CEDES has the right product at the right price.

The MicroRay is the first sensor to fully safeguard the hinge door edge of automatic swing doors while the TOF/Taxi uses Time-of-Flight technology to safeguard the leading edge of these doors when opening and closing. The trio of GridScan safety light curtains offer exceptional protection for industrial doors and gates and the TLS 500/600 sensors provide ultra-reliable presence detection.vodilno podjetje na svetu, ko gre za rešitve na področju optičnih sistemov in senzorjev za avtomatska vrata in prehodi.

BACK



DOOR PROTECTION SPEED GATES
PEOPLE COUNTING INDUSTRIAL GATES SAFEGUARDING

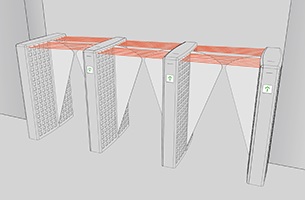

Micro MF/M light curtain is designed to monitor the dangerous areas between sluices.

Model:

Micro MF/M light curtain with 2 cones

area detection
Aplication:
  • Safeguarding sluices
  • Pedestrian gates
Operating range:  do 1,5m
Supply voltage: 14VDC ... 30VDC
Output: 2x PNP/NPN
Protection high: up to 2.336mm Link to documentation:
Certificate:

Micro MF for multifuction solution

Model:

Micro/MF
Aplication:
  • Safeguarding of sliding doors
  • Safeguarding of garage and industrial doors

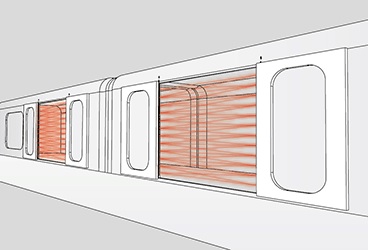

  • Safeguarding of train and platform doors
Operation range:  up to 6m
Supply voltage: 14VDC ... 30VDC
Output: PNP/NPN
Protection high: from 900mm to 2.336mm Link to documentation:
Certificate:

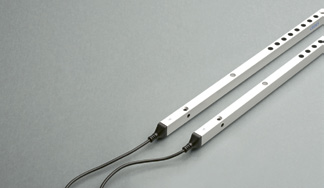

Safety light curtain for automatic doors  - certificate SIL 2

Model:

GridScan/Mini
Aplication:
  • High-speed doors
  • Sectional doors
  • Vertical closing telescopic doors
  • Freight elevators

Operation range:  to 10m   MOVIE
Supply voltage: 10VDC ... 30VDC
Output: PNP/NPN
Protection high: to 2.500mm   Link to documentation:
Certificate:

Safety light curtain for rnage up to 80m  - certificate SIL 2

Model:

GridScan/LR
Aplication:

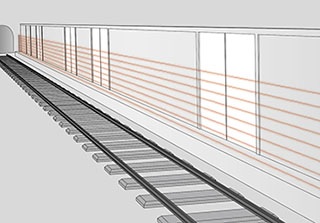

  • Platform screening
  • Securing of parking areas
  • Safeguarding outdoor entry gates
  • Hangar doors
Operation range: up to 80m
Supply voltage: 10VDC ... 30VDC
Output: OSSD PNP
Protection high: to 2.600mm Link to documentation:
Certificate:

TLS 600 "diffuse-reflective" sensor

Model:

TLS 600
Aplication:
  • Sliding doors
  • Telescopic doors

Operating range:  up to 4 m
Power supply: 10VDC ... 30VDC
Output: PNP/NPN
Dimension: 62mm × 18mm × 32 mm   link to documentation:
Certificate:

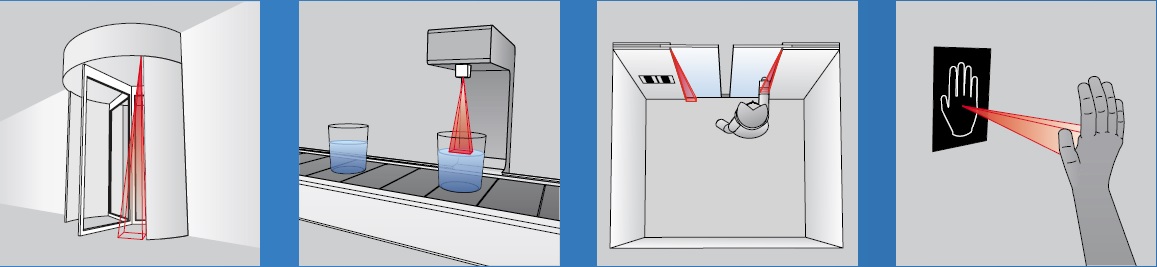

Safety certified and automation sensor TOF/SPOT

Model:

TOF/SPOT
Aplication:
  • Safeguards the closing edge of revolving doors
  • Safeguards the closing edge of glass door

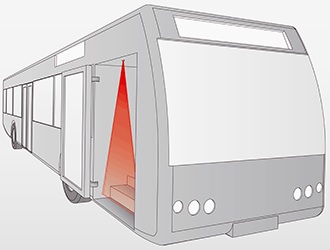

  • Safeguards of bus doors

Operation range:  up to 3 m
Power supply: 10VDC ... 30VDC
Output: solid state reley, analog output
Dimenzion: Ø 29.2 mm × 35.8 mm   Link to documentation:
Certificati:

Certificirani varnostni senzor TOF/PSD

Model:

TOF/PSD
Namen:

zaznavanje prisotnosti in gibanja


Delovanje: 2,1m v širino in 3m v višino
Napajanje: 24 VDC
Izhod: PNP/NPN
Dimenzije: 139 mm × 69 mm × 59 mm   Povezava do tehnične dokumentacije:
Certifikati:

Certificirani varnostni senzor TOF/TAXI

Model:

TOF/TAXI
Namen:

zaznavanje prisotnosti in gibanja


Delovanje: 2,1m v širino in 3m v višino   OGLED FILMA - IR
Napajanje: 24 VDC   OGLED FILMA
Izhod: PNP/NPN
Dimenzije: 139 mm × 69 mm × 59 mm   Povezava do tehnične dokumentacije:
Certifikati:
