SWISS manufacturer CEDES is a world leader when it comes to sensor solutions for elevators. Over 25 years we have built up partnerships with all the leading names in the industry, providing innovative sensor solutions with our extensive portfolio of proven sensors and light curtains. Our worldwide support program ensures we are where our customers are.
Innovation lies at the heart of CEDES. We have developed sensors that can be integrated into almost any installation but we also offer customer specific solutions to meet the needs of any application. That same innovation has led to the design of the IMS 100, a TOF (Time-of-Flight) based sensor for high-resolution 3D applications. This latest TOF technology enables intelligent and self-adjusting systems which afford easy installation. We combine incredible potential with proven products.
ELEVATOR INDUSTRY |
 |
 |
 |
| Complete safeguarding of elevator doors | Detection the activity in a defined area |
 |
 |
| Hoistway information for elevators | Safeguards users of elevators with safety light curtain - SIL2 |
Cost-efficient full-area safeguarding of elevator doors
Model: |
cegard/Mini SY-16 |
 |
 |
| Aplication: | The most cost-efficient full-area safeguarding of elevator doors |
 |
|
| Operatin range: | up to 4m | ||
| Supply voltage: | 10 VDC ... 30 VDC | ||
| Output: | PNP/NPN ... NC ali NO | ||
| Aditional options: | Ex-version available; more optical elements... | Link for documentation: | |
| Certificate: |
    |
 |
Safety light curtain for elevators without car doors - cartificate SIL2
Model: |
cegard/Lift 70 ali 46 |
 |
| Aplication: |
Modernization of elevators without car doors. The alternative to expensive cabins with doors.
|
 |
| Operatin range: | up to 4m (option up to 8m) | |
| Supply voltage: | 10 VDC ... 30 VDC | |
| Output: | 2x PNP, relay24VDC 1A | |
| Aditional options: | Ex-version for areas cone 2/22 | Link for documentation: |
| Certificate: |
 |
|
Cost-efficient safety light curtain for elevators without car doors - cartificate SIL2
|
Model: |
GridScan/Mini SY-2030-32 |
|
 |
| Aplication: |
Modernization of elevators without car doors. The alternative to expensive cabins with doors.
|
||
| Operation range: | from 1m to 10m | MOVIE | |
| Supply voltage: | 14 VDC ... 30 VDC | ||
| Output: | PNP/NPN | ||
| Dimension: | 12mm x 16mm x 2030mm | Link for documentation: | |
| Certificte: |
 |
 |
|

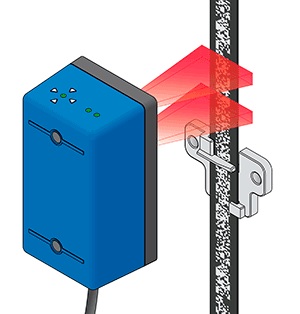

APS - Absolute Position System hoistway information
Model: |
APS - Absolute Position System |
|
 .jpg) |
| Aplication: | Hoistway information for elevator | ||
| Operation: | rAbsolute position up to 1,500 m with a resolution of 0.5 mm, Velocity up to 20 m/s with a resolution of 1 mm/s | ||
| Supply voltage: | 24 VDC +/-20% | ||
| Output: | CAN bus or customer specific interface | ||
| Dimension: | 12mm x 16mm x 2030mm | Link for documentation: | |
| Certificate: |
|
|
